Customized PVDF Architectural Membrane For Global Engineering Supply

Customized PVDF Architectural Membrane For Global Engineering Supply

محل منبع:

چین

نام تجاری:

Relle

گواهی:

CE&SGS

شماره مدل:

PVDF

با ما تماس بگیرید
درخواست نقل قول
جزئیات محصول
عملیات سطحی:
PVDF
BaseFabricConstruction:
100% PET
یام:
پلی استر با مقاومت بالا 1100/2200Dtex
وزن:
1350 (+20،-20) گرم در متر مربع
ضخامت:
1.0 ~ 1.03 میلی متر
استحکام کششی (تار / پود):
8000/7000 نیوتن/5 سانتی متر
قدرت اشک (تار/ پود):
1050/950N
قدرت چسبندگی:
130/125N/5cm
چسبندگی:
13daN/5cm
استاندارد DIN:
B1
محصولات مرتبط
با ما تماس بگیرید
حالا تماس بگیرید
توضیحات محصول

Customized PVDF Architectural Membrane For Global Engineering Supply

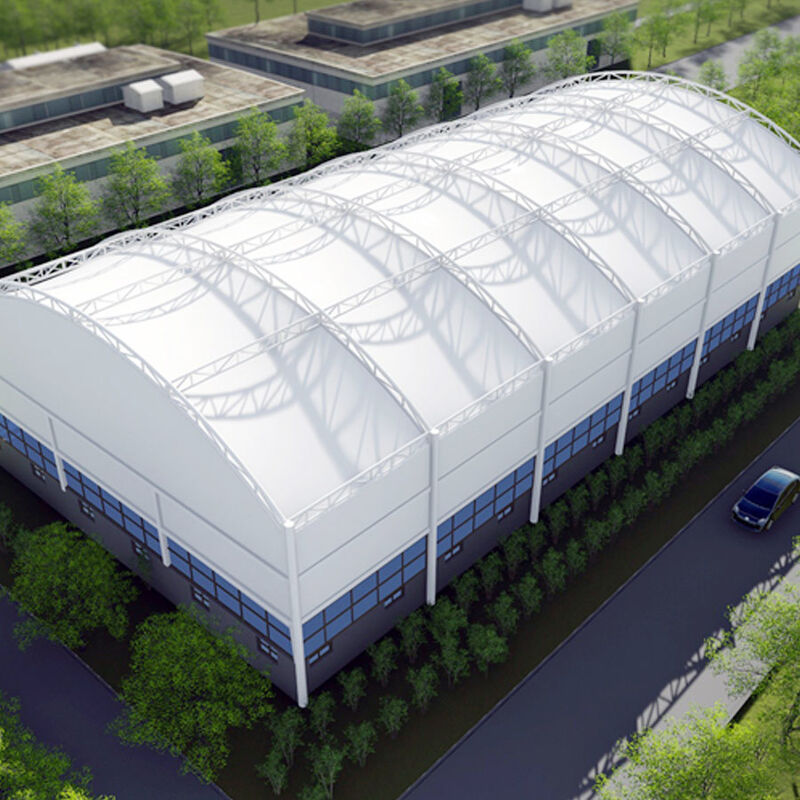

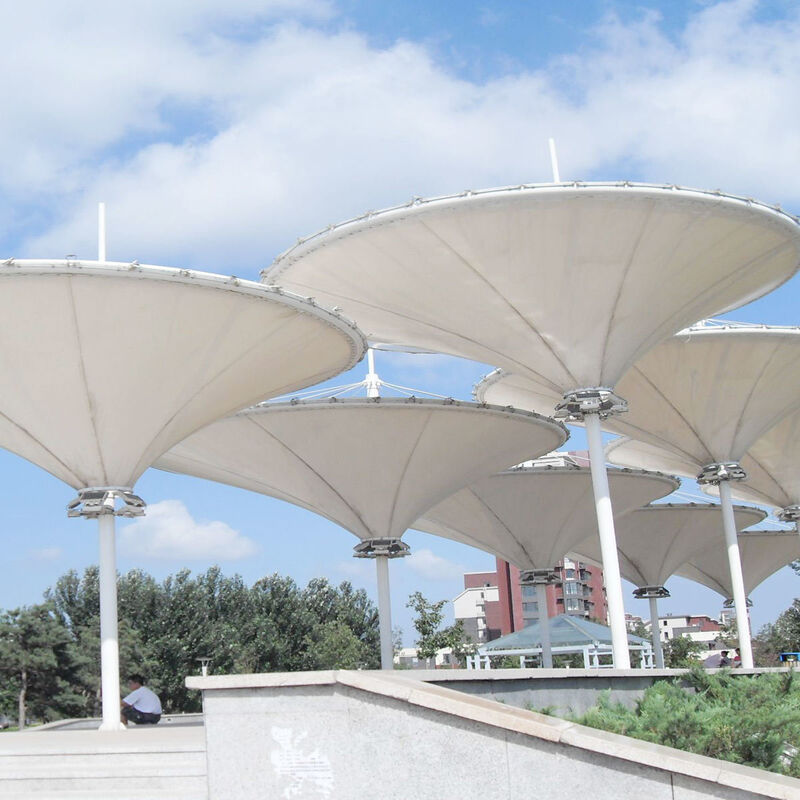

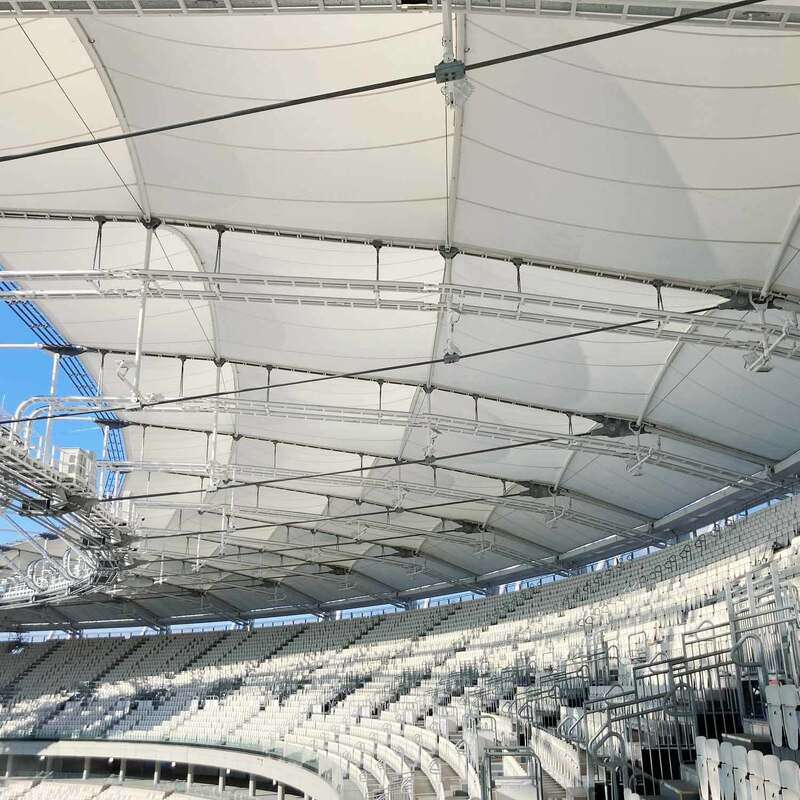

This PVDF building membrane has standard thicknesses 1.0mm to 1.03mm, widths 1000mm to 1800mm and lengths 50m 100m. Customizable colors are offered. It boasts excellent weather UV resistance self cleaning high strength flame retardancy and heat insulation, and is workable for stadium roof wall and tension membrane structure.


Specifications

Customized PVDF Architectural Membrane For Global Engineering Supply 0
  • Surface Coating - The outermost layer, designed to resiststains and wear for long-term durability.
  • PVDF Functional Layer - The core layer that providesexcellent weather resistance, including UV and corrosion protection.
  • Base Fabric Layer - The structural foundation, made ofhigh-strength polyester to enhance mechanical strengthand tensile performance.
  • Back Coating - The bottom layer, which bonds the structuretogether and protects the base fabric from moisture anddamage.
